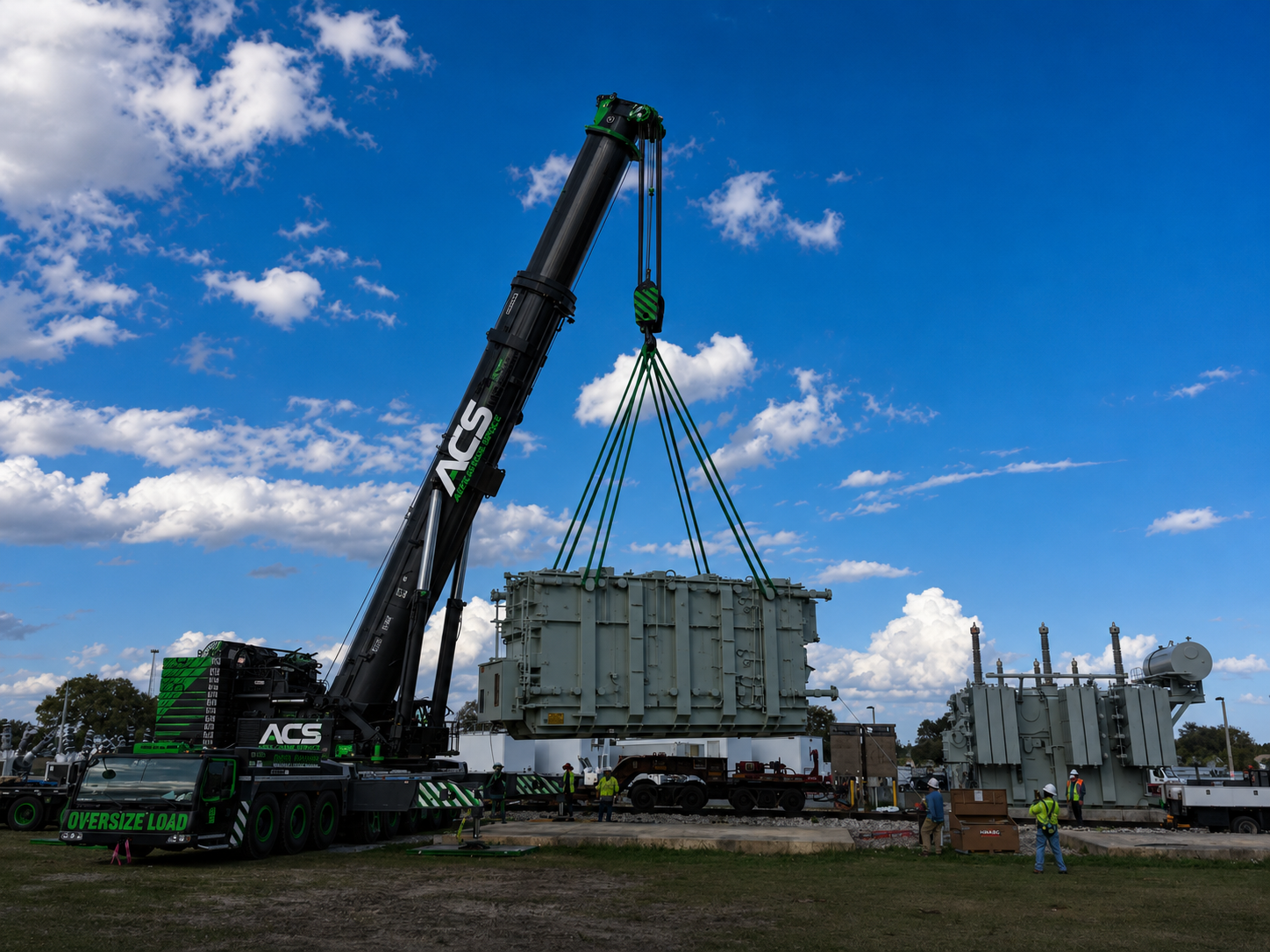

Understanding Crane Load Charts: A Project Manager's Guide

Heavy Lift. Engineered Execution. Apex Crane Service builds lift planning and engineering on a deep understanding of crane capacities. This guide is for the project managers, superintendents, and owner's reps who don't run cranes for a living but have to make decisions that depend on understanding what the iron can — and cannot — do.

If you manage crane-intensive projects and you cannot read a load chart, you are flying blind. Load charts are the foundation of every crane selection decision, every lift plan, and every capacity check that happens on your project. Understanding them does not make you a crane operator — it makes you a better project manager.

What Is a Crane Load Chart?

A crane load chart is the manufacturer's specification of how much weight a crane can safely lift at various combinations of boom length, boom angle, and working radius. It is the crane's capability envelope — the hard boundary between a safe lift and a potential catastrophe.

Every crane model has its own load chart, and every configuration change (boom length, counterweight, outrigger extension, track width) produces a different chart. A 750-ton crawler crane is not one machine with one capacity — it's a family of configurations, each with its own table.

Key Terms You Need to Know

Working Radius

The horizontal distance from the center of rotation (slew ring) to the center of the load. As radius increases, capacity decreases — this is the most fundamental relationship in crane operations. A crane rated at 500 tons might only lift 50 tons at maximum radius. Understanding this curve is half of crane selection.

Boom Length

The length of the crane's main boom. Longer booms reach higher and further but reduce capacity at any given radius. Many cranes have configurable boom lengths — you install only what you need for the specific lift, because every additional section costs you capacity.

Gross vs. Net Capacity

The chart shows gross capacity — the total weight the crane can support at that radius. But you lift net — meaning you must subtract the weight of all rigging hardware below the hook: block, hook, slings, shackles, spreader bars, headache balls. This can easily be 5–20 tons of deductions on a large crane.

Quadrants (for crawler cranes)

Crawler cranes have different capacities depending on whether the load is over the side, over the front, or over the rear. The load chart will specify capacity by quadrant or by degree of rotation. Over-the-side capacity is typically less than over-the-front or rear because of the narrower base of support.

Outrigger Extension (for mobile cranes)

Telescopic and truck-mounted cranes show different load charts for different outrigger configurations: fully extended, partially extended, or retracted. Always plan for fully extended outriggers unless site constraints make it impossible — and when they do, the reduced-capacity chart applies. "We'll get the outriggers out somehow" is not a lift plan.

Counterweight Configuration

Modern crawlers and large mobiles have multiple counterweight configurations. The same crane with 200 tons of counterweight has dramatically different capacity than with 400 tons of counterweight. The load chart is config-specific — make sure the chart you're reading matches the iron that's actually showing up on site.

How to Read a Basic Load Chart

1. Identify your configuration — boom length, counterweight, track width or outrigger setup, jib (if any)
2. Find your working radius — measure or calculate the horizontal distance from slew center to load. Use the worst case across pick, swing, and set.
3. Cross-reference — find the intersection of your boom length row and radius column
4. Read the gross capacity — this is the maximum weight at that point
5. Subtract rigging weight — deduct all below-the-hook equipment to get net capacity
6. Apply safety factor — most companies and many standards require staying below 75–80% of rated capacity for routine lifts. Lifts above 75% are typically classified as critical lifts requiring additional engineering and oversight.

Common Load Chart Mistakes

• Ignoring radius growth — as a load swings out, the radius increases and capacity decreases. A load picked at 40 feet of radius that swings to 45 feet may exceed capacity at the set point.
• Wrong configuration — reading the chart for full outriggers when the crane is on partial extension, or for a counterweight package that isn't actually installed
• Forgetting deductions — not accounting for rigging weight, especially on larger lifts where spreader bars and slings can weigh tons
• Not checking both pick and set — the crane needs capacity at the pick radius AND the set radius, and at every point of the swing between them. The governing point isn't always obvious.
• Wind loading — load charts assume calm conditions. Wind adds dynamic loading that must be accounted for separately, typically through wind speed derations specified by the manufacturer.
• Ground conditions — load charts assume a level, stable surface. Slope, soft ground, or inadequate cribbing changes the calculation entirely.

When You Need Professional Help

Load charts give you the capability envelope, but a proper lift plan accounts for everything the chart cannot: site conditions, wind, ground bearing pressure, proximity to structures, multi-crane interference, and dynamic loading. The chart tells you what's possible. The lift plan tells you what's safe on your site, on this day, with this crew.

If you are managing projects that involve lifts above 75% of crane capacity, tandem lifts, lifts near structures or personnel, or anything in marine or wind environments, you need professional lift planning and safety oversight — not just a competent operator and a printed chart.
